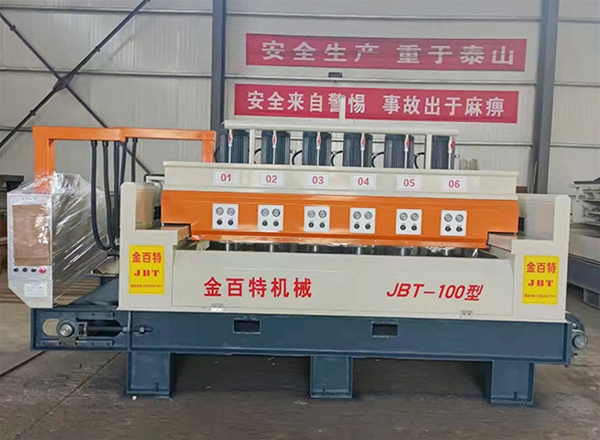

Jbt-6 automatic grinding machine is mainly used for grinding and polishing granite, marble, inorganic cement products and other plates. This series of equipment has reasonable structure, stable performance and efficient operation. The advanced control system adopts PLC control with text display to realize intelligent control. This series of equipment adopts patented grinding disc seat, which has the advantages of long service life, low failure rate, high efficiency, low abrasive loss, non fragile plate and so on. The conveyor belt adopts famous brand products with uniform thickness, which ensures the basic thickness of plate products. The speed of conveyor belt operation and beam swing can be adjusted by frequency converter to realize variable speed control. The equipment has the characteristics of low power consumption, low use cost, high grinding and polishing efficiency, convenient operation and simple maintenance. It greatly improves the labor efficiency and reduces the production cost.
Technical parameters:

Technical indicators	Numerical value
Diameter of polishing disc	200-300mm
Number of discs thrown	6个
Grinding plate width	400-1000mm
Grinding plate thickness	20-70MM
Main motor	7.5KW
Total power	48.7KM
Belt feed speed	0.5-2m
Effective lifting stroke of grinding head	125mm
Cooling water pressure(mpa)	0.1-0.15
Compressor air supply force(mpa)	>0.8
water consumption(m3/h)	8
Overall size	4600mm* 2200mm *2100mm
Weight	5000KG
